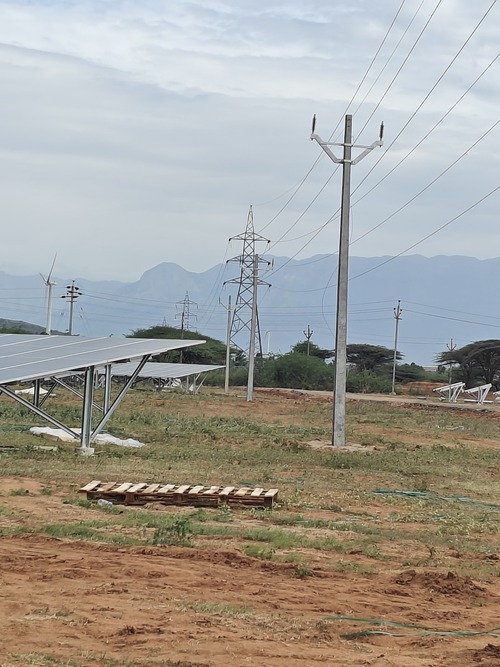

33 kv ht line construction

Name: 33 kv ht line construction
Brand: SRI AMMAN ENGINEERING WORKS
Price: 1200000.0 INR
Availability: InStock

Price 1200000.0 INR/ Kilometer

Get a Price/Quote

MOQ : 1 Kilometer

33 kv ht line construction Specification

Product Type
HT Transmission Line

Material
Mild Steel (MS) / Steel

Welding Standard
IS 823

Capacity
Up to 500 Amps

Application
Overhead High Tension (HT) Electricity Transmission

Galvanization Standard
IS 2629 / IS 4759

Out Coating
Hot dip galvanized

Standard
IS 2062, IS 2713, IS 4091

Shape
Angle, Channel, Pole

Surface Treatment
Corrosion resistant galvanized

Height
9 m / 11 m / 13 m

Voltage
33 kV

Design
Lattice / Tubular

Thickness
5 mm - 12 mm

Color
Silver / Metallic Gray

Insulator Type Compatibility
Pin, Disc, and Post Insulators

Line Span
Up to 250 meters (between poles)

Quality Assurance
Type-tested as per IEC/IS standards

Earthing Provision
Included as per IS 3043

Corrosion Protection Life
Minimum 20 years

Installation Type
On-site assembly and erection

Manufacturing Process
Automatic CNC fabrication, precision bending and drilling

Fittings Included
Cross arms, insulator brackets, clamps, nuts & bolts

Wind Load Capacity
Designed as per IS 875 (Part 3)

Maintenance
Minimal, periodic inspection recommended

Fire Resistance
Non-combustible as per IS standards

Conductor Compatibility
ACSR, AAC, AAAC

Foundation Type
Cast-in-situ concrete

Ambient Temperature Range
-10C to +55C

33 kv ht line construction Trade Information

Minimum Order Quantity
1 Kilometer

Payment Terms
Cash in Advance (CID)

Supply Ability
25 Kilometers Per Month

Delivery Time
30 Days

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
Tamil Nadu

About 33 kv ht line construction

Experience the grand standard in 33 kV HT line construction with our top-drawer solutions. Manufactured using automatic CNC fabrication, each component undergoes precision bending and drilling for unparalleled accuracy. All fittings-including cross arms, insulator brackets, and clamps-are meticulously included, ensuring an instant checkout and rapid deployment. Engineered for unprecedented endurance, our systems boast a scarce 20-year corrosion protection life and are designed for wind loads as per IS 875 (Part 3). Compatible with ACSR, AAC, and AAAC conductors, fire-resistant, and suitable for harsh climates, this premium kit upgrades your power transmission infrastructure with unmatched reliability and minimal maintenance.

Versatile Applications for 33 kV HT Line Construction

33 kV HT line construction is specifically used for overhead high tension (HT) electricity transmission, offering robust performance in power distribution networks. Ideal for both urban and rural power transmission, it accommodates applications in utilities, industrial complexes, and infrastructure projects. This solution is suitable for use where reliability and longevity are paramount, including grid expansion, new installations, and upgrade projects, making it a flexible option for high-capacity, long-span electrical delivery.

Swift Delivery, Easy Payment, and Sample Availability

Quick dispatch and timely delivery are prioritized to ensure your project deadlines are met efficiently. Products are usually delivered promptly upon order confirmation, with sale price offers available for bulk requirements. Flexible payment terms are provided for seamless transactions. For quality assurance, samples can be requested prior to bulk purchases, allowing you to review quality and compatibility firsthand. Rely on our streamlined process for a smooth, efficient procurement experience every time.

FAQ's of 33 kv ht line construction:

Q: How is the 33 kV HT line constructed and what materials are used?

A: The line is constructed using mild steel or steel components shaped by automatic CNC fabrication with precision bending and drilling. Components are hot dip galvanized as per IS 2629/IS 4759 for superior corrosion resistance, ensuring a long service life.

Q: What types of insulators and conductors are compatible with this HT line setup?

A: This 33 kV HT line can be used with Pin, Disc, and Post insulators, and is compatible with a range of conductors including ACSR, AAC, and AAAC, providing flexibility for varied transmission requirements.

Q: When can I expect delivery of these products and how are orders processed?

A: Quick dispatch is a priority, with products typically delivered promptly after order confirmation. The sale price may be offered on bulk orders, and samples can be provided before finalizing large purchases.

Q: Where are these 33 kV HT line systems most commonly applied?

A: These systems are widely installed in overhead electricity transmission for utilities, industrial sites, urban expansion, and infrastructure projects throughout India, wherever robust, long-span electrical delivery is required.

Q: What benefits does the 33 kV HT line system offer over conventional alternatives?

A: This system boasts unprecedented corrosion protection (20 years), minimal maintenance, compliance with international and Indian standards, and rapid on-site assembly, delivering superior reliability and cost efficiency.

Q: How is corrosion resistance achieved in the 33 kV HT line structures?

A: All steel components are hot dip galvanized as per IS 2629/IS 4759 standards and treated to provide a minimum 20-year corrosion protection life, making it suitable for diverse and harsh environmental conditions.
