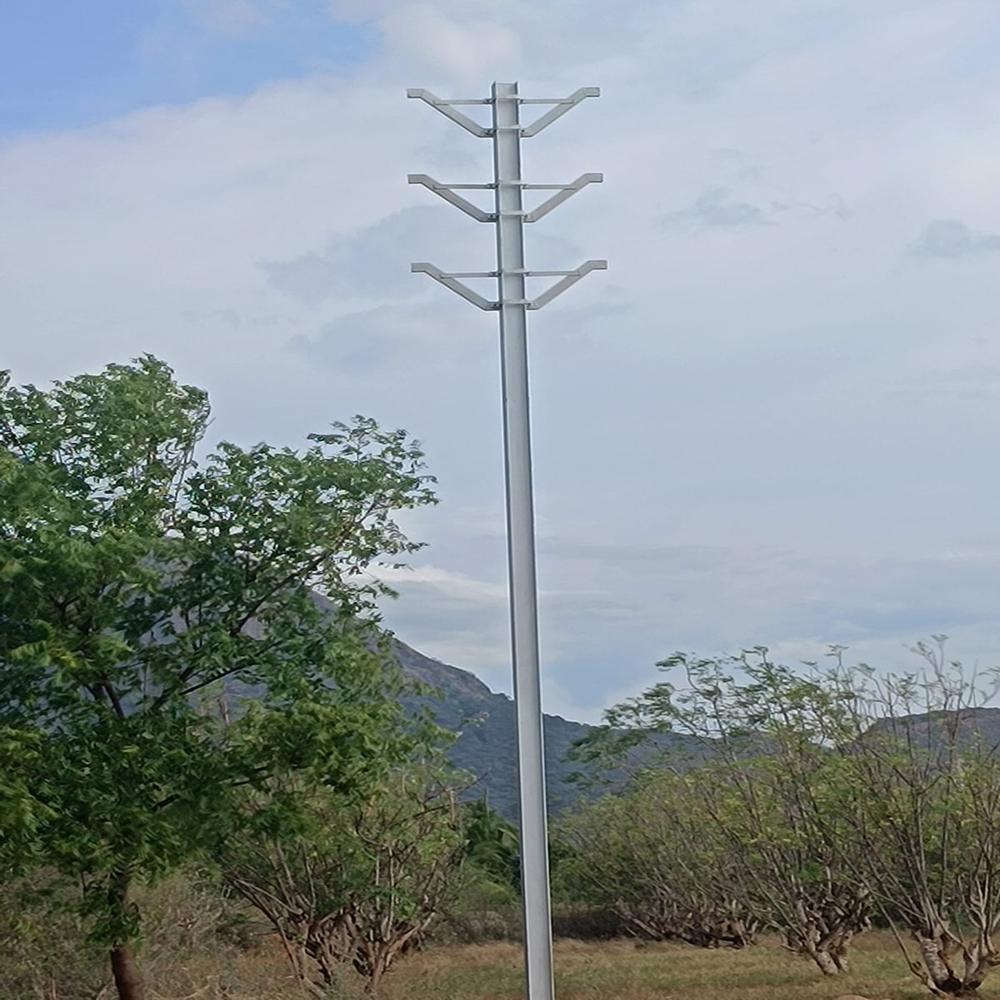

11 kv ht line construction

Name: 11 kv ht line construction
Brand: SRI AMMAN ENGINEERING WORKS
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Kilometer

Get a Price/Quote

MOQ : 1 Kilometer

11 kv ht line construction Specification

Product Type
HT Transmission Line

Material
Mild Steel/Steel

Welding Standard
IS 9595 (Fusion Welding)

Capacity
Up to 200 Amperes (as per conductor spec)

Application
Overhead Power Distribution

Galvanization Standard
IS 2629, IS 2633, IS 4759

Out Coating
Hot Dip Galvanized

Standard
IS 2713/IS 2062

Shape
Pole (Cylindrical/Round), Cross-arm (Angle Iron)

Surface Treatment
Galvanized

Height
9m, 11m, 12m (as per design requirements)

Voltage
11 kV

Design
Pole Structure with Horizontal/Vertical Configuration

Thickness
3 mm to 5 mm (depending on component)

Color
Silver/Galvanized Grey

Corrosion Protection
Hot Dip Galvanized up to 610 g/m2

Climbing Provision
Steps/Ladder Provided

Fasteners
Galvanized Bolts and Nuts

Testing Standard
IS 5613 (for Overhead Lines)

Line Span
65-100 meters

Safety Factor
As per IS/IEC standards

Foundation Type
Cement Concrete (PCC/CC)

Earthing
GI Pipe or Rod as per IS 3043

Installation Method
On-site Erection and Stringing

Conductor Material
ACSR/AAAC

Wind Pressure Withstand
As per IS 875

Insulator Type
Disc insulators (Porcelain/Polymer)

Accessories
Pin, Stay, Suspension Fittings, Clamps

Ambient Temperature Range
-5C to 50C

Cross-Section Area of Conductor
55 sq.mm/100 sq.mm (as per load)

About 11 kv ht line construction

Utilise our exclusive offer on premium 11 kV HT line construction, featuring praiseworthy engineering and distinguished durability. Equipped with lustrous disc insulators (porcelain/polymer) and ACSR/AAAC conductors (55/100 sq.mm), this solution ensures reliable power delivery across 65-100 meter spans. All poles are galvanized (up to 610 g/m2), meeting IS/IEC and IS 5613 standards, and constructed from high-strength steel for enduring performance. Enjoy robust safety, remarkable wind resistance (as per IS 875), and all necessary fittings, expertly installed and corrosion-protected for years of service-ideal for power distributors, suppliers, manufacturers, and service providers across India.

Advantages & Applications of 11 kV HT Line Construction

This praiseworthy 11 kV HT line construction system is ideal for distinguished commercial and industrial power distribution. Its robust design and corrosion-resistant components ensure reliability in challenging environments. Entrusted to deliver consistent performance, these lines are perfect for applications ranging from urban electrical grids to rural expansions, supporting utilities, distributors, and manufacturers. The solution combines commercial value, broad application potential, and high safety standards to increase operational efficiency throughout India.

Export Markets, Sampling Policy, and Supply Ability

Our 11 kV HT line construction solutions are dispatched promptly to main export markets across the Middle East, Africa, and Southeast Asia. We deliver at the lowest price, ensuring each order meets international expectations. Sample policies are flexible and products are delivered as per the client's project schedule. With a reliable supply ability to meet bulk requirements, your infrastructure upgrades will proceed seamlessly and efficiently, driven by high manufacturing capability and streamlined logistics.

FAQ's of 11 kv ht line construction:

Q: How is the installation process for an 11 kV HT line carried out?

A: The installation process involves on-site erection and stringing of the poles and conductors, with each step performed by experienced technicians following IS 5613 standards. Safety provision through steps or ladders is included for climbing and maintenance.

Q: What are the key benefits of utilising hot dip galvanized components in 11 kV HT line construction?

A: Hot dip galvanizing provides lustrous corrosion protection up to 610 g/m2, greatly extending the lifespan of poles and fittings and ensuring reliable performance in harsh climates.

Q: Where can this 11 kV HT line solution be applied?

A: This system is ideal for use in overhead power distribution for commercial, industrial, and rural grid expansion projects, including utilities, manufacturers, and power distributors across India and abroad.

Q: When can clients expect delivery after placing an order?

A: Once an order is confirmed, products are dispatched according to the project schedule. Delivery timelines depend on order size and destination but are managed efficiently for on-time project execution.

Q: What testing and quality standards are adhered to during construction?

A: All materials and completed lines conform to thorough testing and quality controls as per IS/IEC standards, including IS 5613 for overhead lines and ISO standards for welding, galvanization, and fasteners.
